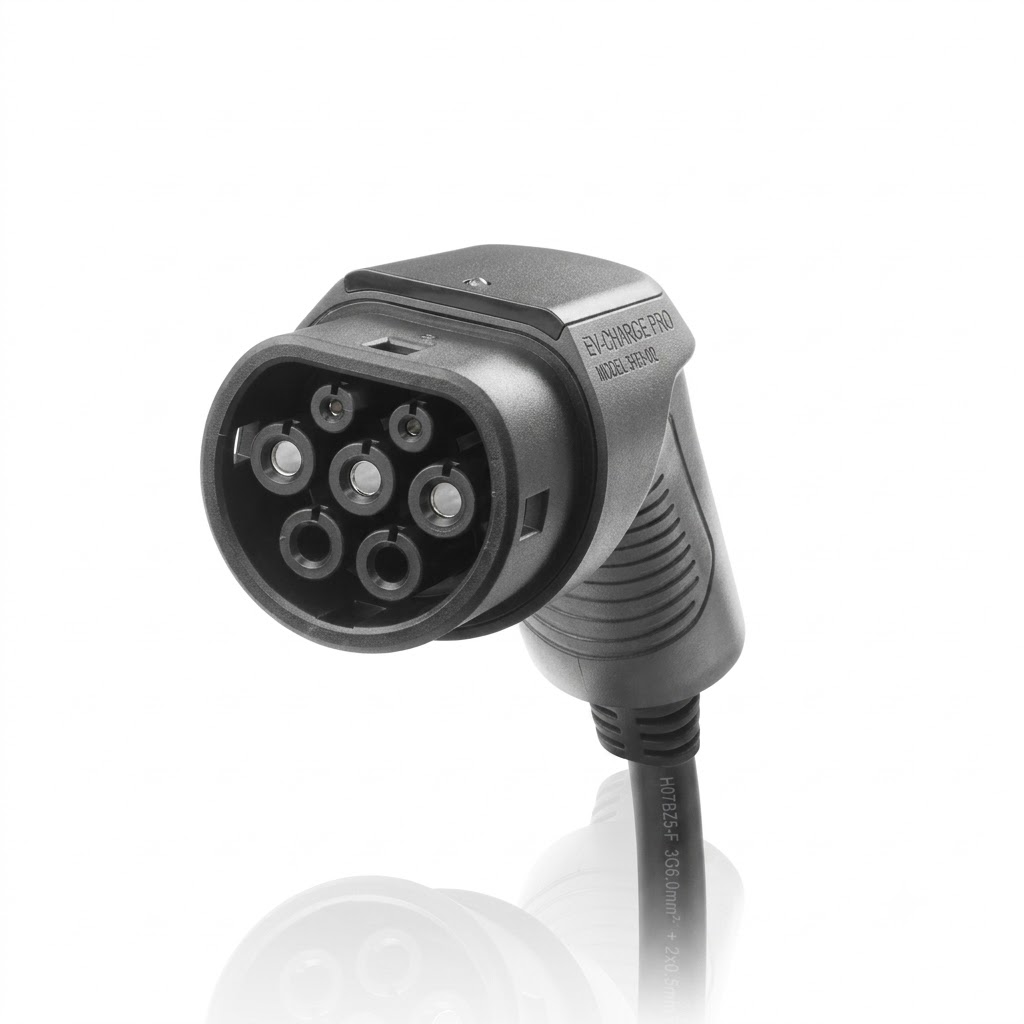

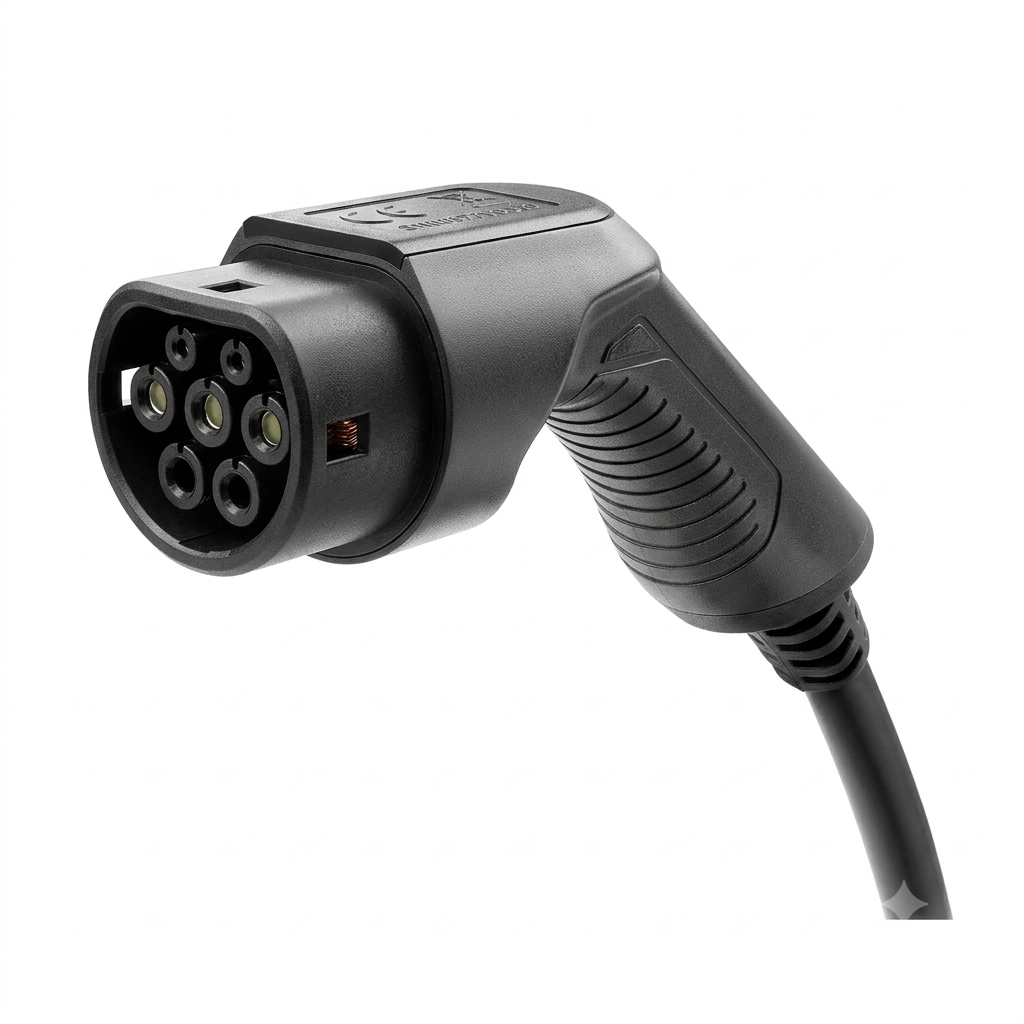

Premium Type 2 EV Charging Connector
The EV Type 2 Connector Charging Plug is a high-performance charging connector designed for reliable, safe, and efficient AC charging of electric vehicles. Manufactured in compliance with IEC 62196-2 European standards, it offers excellent durability, superior conductivity, and long service life for residential, commercial, and public EV charging applications.
Built using premium thermoplastic materials and high-quality copper alloy contacts, this connector ensures secure connections, stable charging performance, and outstanding resistance to heat, wear, and harsh environmental conditions.
Product Highlights
- IEC 62196-2 Type 2 Standard
- European Standard (Mennekes)

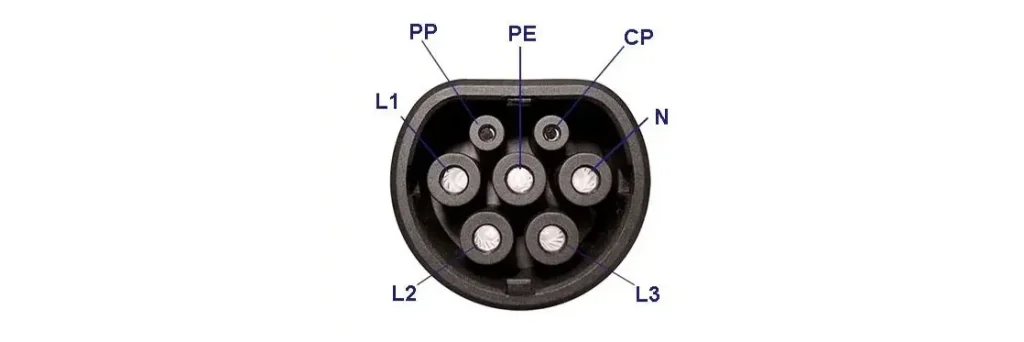

- Premium Copper Alloy Contacts
- Silver-Plated Conductive Pins
- High-Speed Stable Charging
- Ergonomic Anti-Slip Grip
- IP66 Waterproof Protection (Connected)

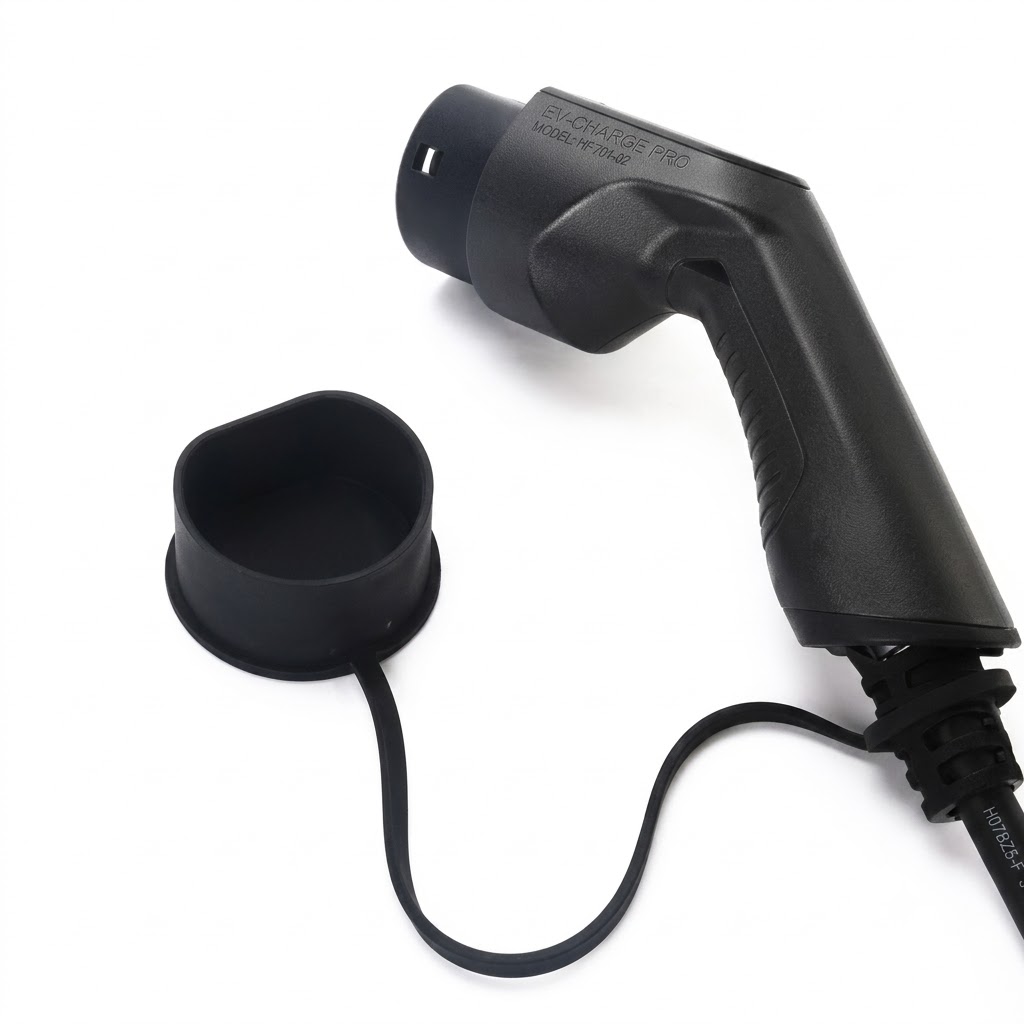

- Dustproof Protective Cap
- Flame-Retardant Thermoplastic Housing
- Heat & Impact Resistant Design
- More Than 5,000 Plug Cycles
- CE & TÜV Certified
| Specification | Details |
|---|---|
| Connector Type | Type 2 Female |
| Standard | IEC 62196-2 |
| Rated Current | 16A |
| Rated Voltage | AC 250V |
| Insulation Resistance | >1000 MΩ |
| Withstand Voltage | 2000V |
| Contact Resistance | ≤ 0.5mΩ |
| Temperature Rise | < 50K |
| Protection Rating | IP66 (Connected) |
| Operating Temperature | -30°C to +50°C |
| Mechanical Life | > 5,000 Plug Cycles |
| Flame Rating | UL94 V-0 |
| Certifications | CE, TÜV Approved |
Premium Materials
Housing
- High-Strength Thermoplastic
- UL94 V-0 Flame-Retardant Material
- UV Resistant
- Heat Resistant
- Impact Resistant
Contact Pins
- Premium Copper Alloy
- Silver-Plated Contacts
- Low Electrical Resistance
- High Conductivity
- Corrosion Resistant
Sealing System
- High-Quality Silicone Rubber
- Waterproof Protection
- Dustproof Design
- Long-Term Outdoor Performance
