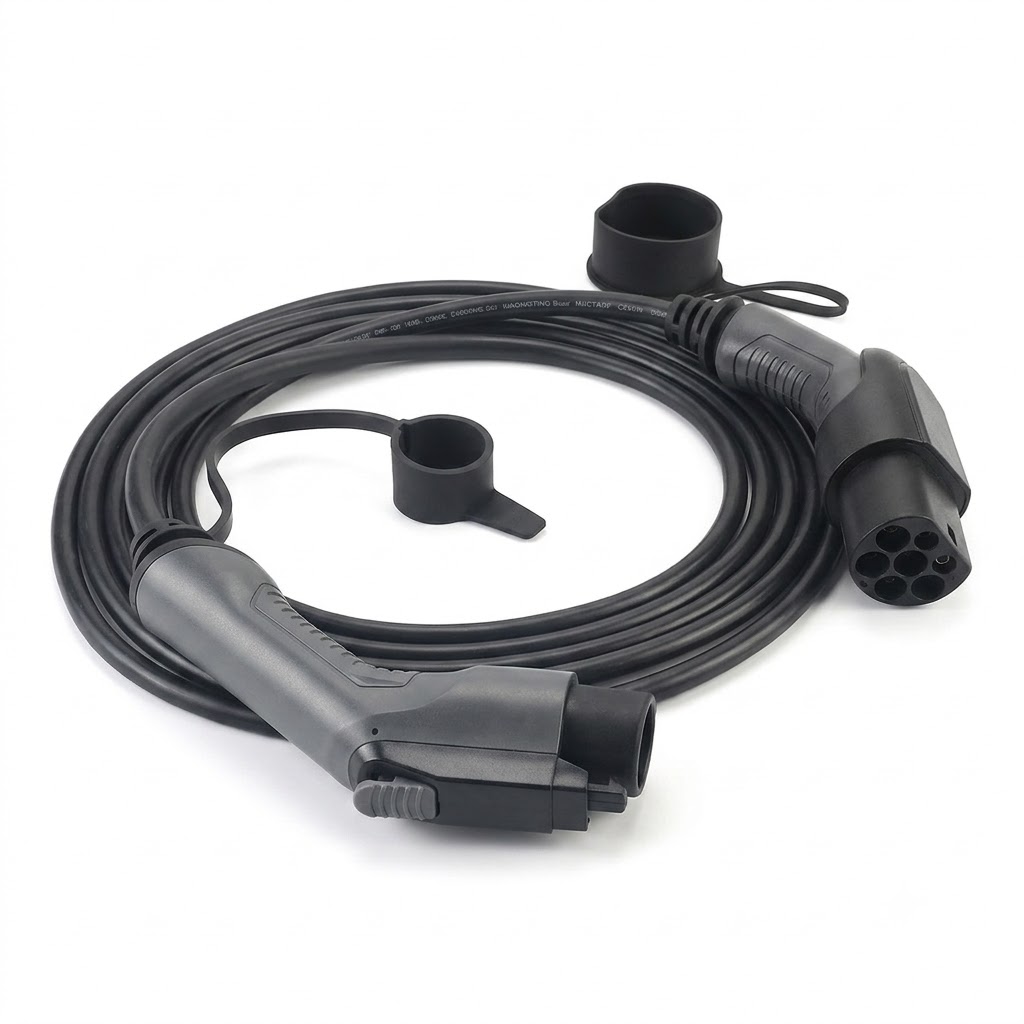

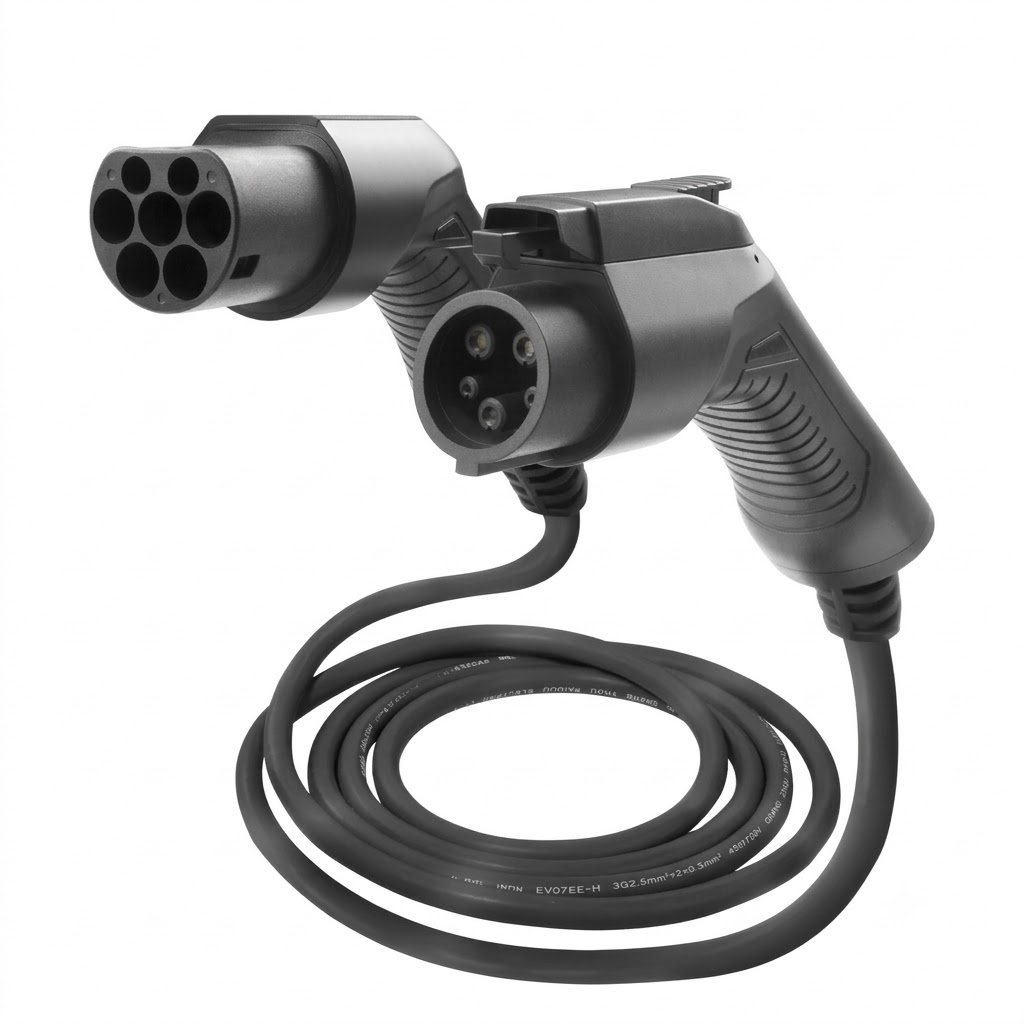

Premium Type 1 to Type 2 EV Charging Cable
The EV Type 1 to Type 2 Charging Cable is a high-performance charging solution designed to connect Type 1 (SAE J1772) electric vehicles with Type 2 (IEC 62196-2) charging stations. Built to international standards, this cable provides safe, efficient, and reliable charging for residential, commercial, and public EV charging applications.
Manufactured with premium flame-retardant materials, silver-plated copper alloy terminals, and a durable heavy-duty cable, it delivers stable power transmission, superior safety, and long-lasting performance in all weather conditions.
Product Highlights
- Type 1 (SAE J1772) to Type 2 (IEC 62196-2)
- 32A Fast AC Charging
- Single Phase AC Input
- 220–250V Operating Voltage
- Intelligent Temperature Monitoring
- Premium Copper Alloy Contacts
- Silver-Plated Terminals
- Heavy-Duty Flexible Cable
- IP66 Waterproof Protection (Connected)
- UV Resistant Construction
- Flame-Retardant Housing
- Over 10,000 Plug Cycles
- CE & TÜV Certified
The Type 1 to Type 2 EV Charging Cable is specially engineered for Mode 3 AC charging, enabling seamless compatibility between Type 1 electric vehicles and Type 2 charging stations. Designed for everyday use, it offers exceptional durability with resistance to heat, pressure, impact, abrasion, oil, and harsh outdoor environments.
A built-in intelligent temperature monitoring system continuously monitors connector temperature and automatically interrupts charging if abnormal temperatures are detected, ensuring maximum safety for both the vehicle and the user.
Its ergonomic connectors, premium materials, and weather-resistant construction make it an ideal charging cable for home charging, commercial installations, and public charging networks.
| Specification | Details |
|---|---|
| Product Type | Type 1 to Type 2 Charging Cable |
| Charging Mode | Mode 3 AC Charging |
| Vehicle Connector | Type 1 (SAE J1772) |
| Charger Connector | Type 2 (IEC 62196-2) |
| Standard | IEC 62196-2 & SAE J1772 |
| Rated Current | 32A |
| Input Voltage | AC 220–250V |
| Power Supply | Single Phase |
| Operating Voltage | 240V |
| Cable Length | 5m (Custom Length Available) |
| Housing Material | Thermoplastic (UL94 V-0) |
| Terminal Material | Copper Alloy with Silver Plating |
| Protection Rating | IP66 (Connected) |
| Operating Temperature | -30°C to +50°C |
| UV Resistance | Yes |
| Contact Resistance | ≤ 0.5mΩ |
| Terminal Temperature Rise | < 50K |
| Withstand Voltage | 2000V |
| Mechanical Life | > 10,000 Plug Cycles |
| Insertion Force | 45N – 100N |
| Impact Resistance | Withstands 1m Drop & 2-Ton Vehicle Load |
| Temperature Protection | Intelligent Temperature Monitoring |
| Certifications | CE & TÜV Approved |
| Warranty | 2 Years |
